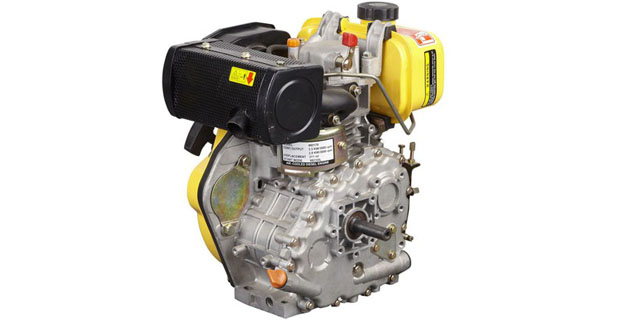

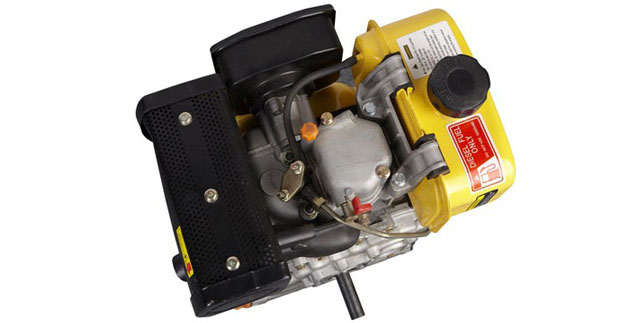

12HP Diesel Engine
| Product Name | TP188F |
| Single-cylinder | 4-stroke |
| 7.2 kW/3000 r/min | 7.9 kW/3600 r/min |
| Shaft Type | Horizontal |
| Cooling system | Air cooled |
| Start System | Recoil or Electric |
| MOQ | 20 Pcs |
1 Year Limited Warranty
88x75(mm)
Bore×Stroke
456cc
Displacement
5.5L
Fuel Tank
1.65L
oil capacity
This 12HP high performance fuel efficient 4-stroke diesel engine, created with direct injection technology, is supplied with an electric start and a manual decompression lever. The electric start system has a pull starter so it can also be started by turning the key. The four stroke diesel engine is coupled with a horizontal keyway, or taper PTO that matches well with a portable generator, water pump, pressure washer, and other light construction equipment applications.
| Model: | TP188F |
| Engine Type: | Vertical,Single cylinder, 4-cycle air-cooled,direct injection |
| Bore×Stroke (mm) | 88×75 |
| Displacement(cc) | 456 |
| Compression ratio | 19:01 |
| Rated power/speed (kw/r/min): | 7.2/3000 7.9/3600 |
| Lowest rotation speed: | at zero load (r/min) ≤1300 |
| Lubricating system: | Pressure splashed |
| Starting system: | Recoil starter/Electric starter |
| Rotation direction: | (face to the output axle) Anticlockwise |
| Fuel type: | 0#、-10#、-20# diesel |
| Fuel tank capacity (L): | 5.5 |
| Fuel consumption/related speed (g/kW.h/r/min) | 273.1/3000 279.5/3600 |
| Lube oil type: | CD grade or SAE 10W-30, 15W-40 |
| Lube oil capacity (L): | 1.65 |
| Starting motor capacity (V、kW): | 12V 0.8kW |
| Charging generator capacity (V、A) : | 12V 3A |
| Battery capacity (V、Ah): | Above 12V36Ah |
| Packing size（L×W×H）mm: | 500X455X545 |
| Gross weight(kg): | ≤47（Recoil starter）≤52（Electric starter） |
