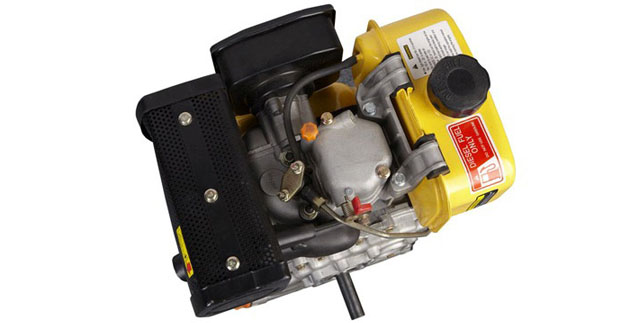

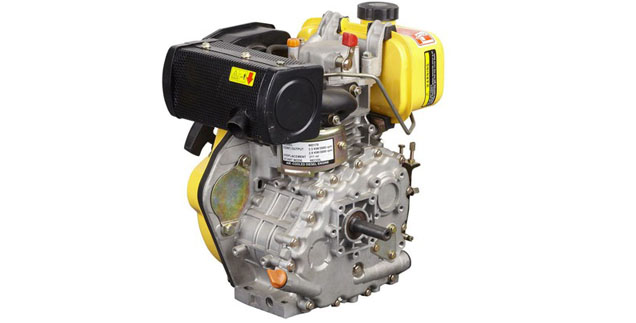

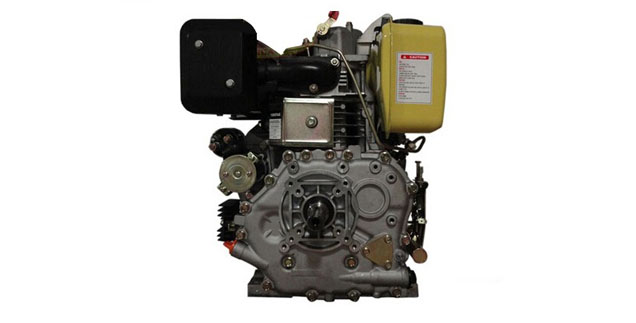

9HP Diesel Engine
| Product Name | TP186F |
| Single-cylinder | 4-stroke |
| 5.7 kW/3000 r/min | 6.3 kW/3600 r/min |
| Shaft Type | Horizontal |
| Cooling system | Air cooled |
| Start System | Recoil or Electric |
| MOQ | 20 Pcs |
1-year limited warranty
86x70(mm)
Bore×Stroke
406cc
Displacement
5.5L
Fuel Tank
1.65L
oil capacity
C.A.G’s 9HP single cylinder, four-stroke, air cooled diesel engine, was created with direct injection technology. This four stroke diesel engine provides super heavy duty durability, and low oil consumption, ensuring high performance, long life, and easy maintenance. Whatever the application, C.A.G diesel small engines will deliver beyond your expectations.
| Model: | TP186F |
| Engine Type: | Vertical,Single cylinder, 4-cycle air-cooled,direct injection |
| Bore×Stroke (mm) | 86×70 |
| Displacement(cc) | 406 |
| Compression ratio | 19:01 |
| Rated power/speed (kw/r/min): | 5.7/3000 6.3/3600 |
| Lowest rotation speed: | at zero load (r/min) ≤1300 |
| Lubricating system: | Pressure splashed |
| Starting system: | Recoil starter/Electric starter |
| Rotation direction: | (face to the output axle) Anticlockwise |
| Fuel type: | 0#、-10#、-20# diesel |
| Fuel tank capacity (L): | 5.5 |
| Fuel consumption/related speed (g/kW.h/r/min) | 275.1/3000 281.5/3600 |
| Lube oil type: | CD grade or SAE 10W-30, 15W-40 |
| Lube oil capacity (L): | 1.65 |
| Starting motor capacity (V、kW): | 12V 0.8kW |
| Charging generator capacity (V、A) : | 12V 3A |
| Battery capacity (V、Ah): | Above 12V36Ah |
| Packing size（L×W×H）mm: | 500X455X545 |
| Gross weight(kg): | ≤47（Recoil starter）≤52（Electric starter） |
