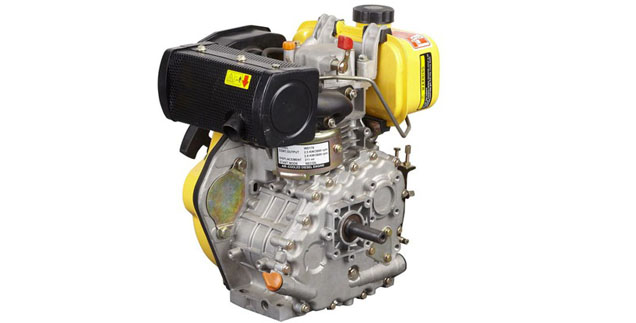

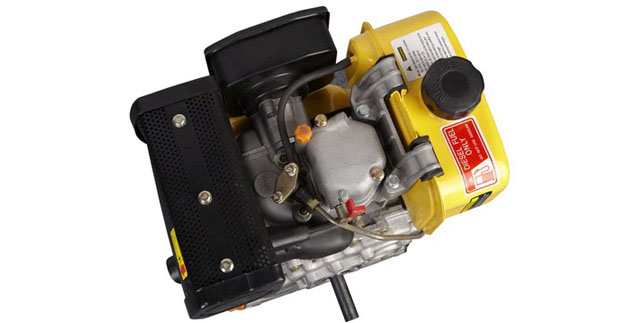

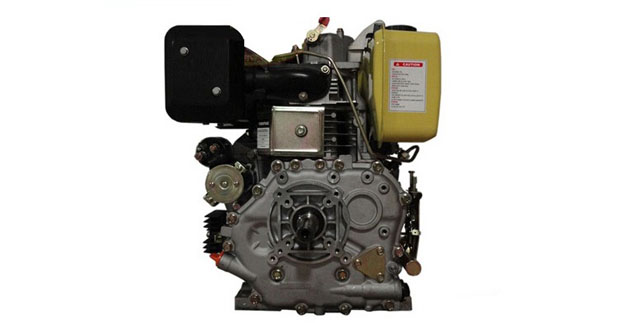

10HP Diesel Engine
| Product Name | TP186FA |
| Single-cylinder | 4-stroke |
| 5.9 kW/3000 r/min | 6.5 kW/3600 r/min |
| Shaft Type | Horizontal |
| Cooling system | Air cooled |
| Start System | Recoil or Electric |
| MOQ | 20 Pcs |
1 Year Limited Warranty
86x72(mm)
Bore×Stroke
418cc
Displacement
5.5L
Fuel Tank
1.65L
oil capacity
C.A.G’s 10HP diesel engine is an air cooled, four stroke diesel engine with a recoil and electric starter that makes it easy to get the equipment running. An ideal match between the combustion chamber and the injection system creates the maximum possible combustion efficiency. Our single cylinder diesel engine is coupled with a horizontal keyway, or taper PTO that matches well with a portable generator, water pump, pressure washer, and other light construction equipment applications.
| Model: | TP186FA |
| Engine Type: | Vertical,Single cylinder, 4-cycle air-cooled,direct injection |
| Bore×Stroke (mm) | 86×72 |
| Displacement(cc) | 418 |
| Compression ratio | 19:01 |
| Rated power/speed (kw/r/min): | 5.9/3000 6.5/3600 |
| Lowest rotation speed: | at zero load (r/min) ≤1300 |
| Lubricating system: | Pressure splashed |
| Starting system: | Recoil starter/Electric starter |
| Rotation direction: | (face to the output axle) Anticlockwise |
| Fuel type: | 0#、-10#、-20# diesel |
| Fuel tank capacity (L): | 5.5 |
| Fuel consumption/related speed (g/kW.h/r/min) | 275.1/3000 281.5/3600 |
| Lube oil type: | CD grade or SAE 10W-30, 15W-40 |
| Lube oil capacity (L): | 1.65 |
| Starting motor capacity (V、kW): | 12V 0.8kW |
| Charging generator capacity (V、A) : | 12V 3A |
| Battery capacity (V、Ah): | Above 12V36Ah |
| Packing size（L×W×H）mm: | 500X455X545 |
| Gross weight(kg): | ≤47（Recoil starter）≤52（Electric starter） |
