9HP 1800rpm Engine
| Product Name | TP186FS |
| Single-cylinder | 4-stroke |
| 5.7 kW/1500 r/min | 6.3 kW/1800 r/min |
| Camshaft | PTO |
| Cooling system | Air cooled |
| Start System | Recoil or Electric |
| MOQ | 20 Pcs |
1 Year Limited Warranty
86x70(mm)
Bore×Stroke
406cc
Displacement
1500/1800
RPM
By Camshaft
PTO

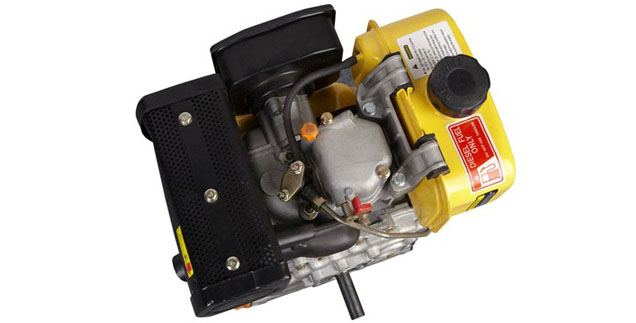

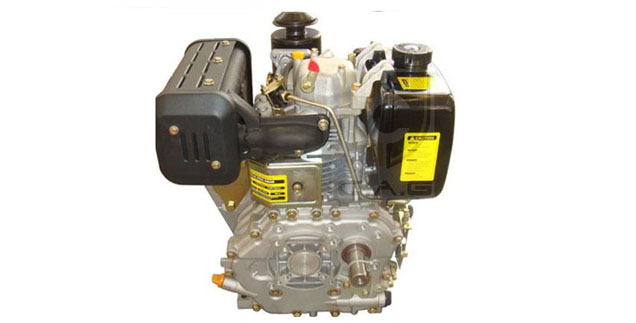

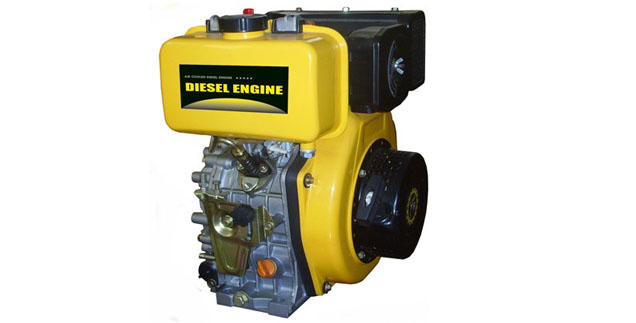

C.A.G’s single cylinder 9HP camshaft output diesel engines, created with direct injection technology, are quick and easy to start with just one-pull. An ideal match between the combustion chamber and the injection system creates the maximum possible combustion efficiency.
| Model: | TP186FS |
| Engine Type: | Vertical,Single cylinder, 4-cycle air-cooled,direct injection |
| Bore×Stroke (mm) | 86×70 |
| Displacement(cc) | 406 |
| Compression ratio | 19:01 |
| Rated power/speed (kw/r/min): | 5.7/1500 6.3/1800 |
| Lowest rotation speed: | at zero load (r/min) ≤1300 |
| Lubricating system: | Pressure splashed |
| Starting system: | Recoil starter/Electric starter |
| Rotation direction: | (face to the output axle) Anticlockwise |
| Fuel type: | 0#、-10#、-20# diesel |
| Fuel tank capacity (L): | 5.5 |
| Fuel consumption/related speed (g/kW.h/r/min) | 275.1/3000 281.5/3600 |
| Lube oil type: | CD grade or SAE 10W-30, 15W-40 |
| Lube oil capacity (L): | 1.65 |
| Starting motor capacity (V、kW): | 12V 0.8kW |
| Charging generator capacity (V、A) : | 12V 3A |
| Battery capacity (V、Ah): | Above 12V36Ah |
| Packing size（L×W×H）mm: | 500X455X545 |
| Gross weight(kg): | ≤47（Recoil starter）≤52（Electric starter） |
