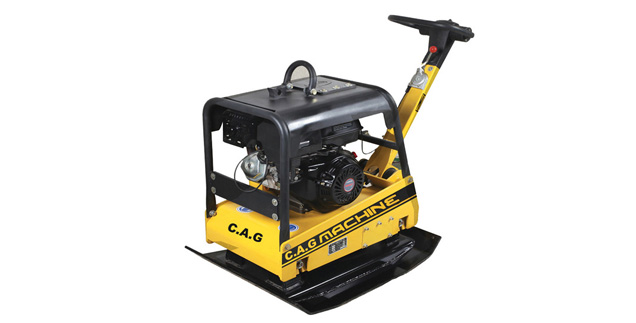

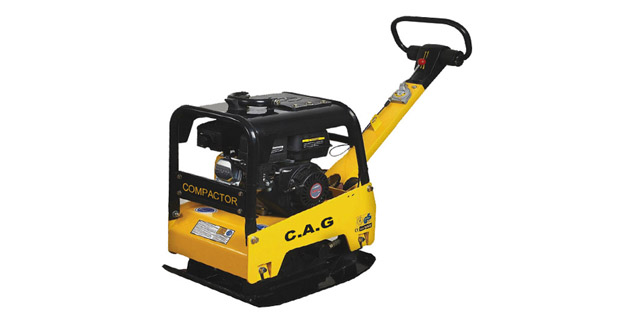

260kg Hydraulic Reversible Compactor
| Product Name | TCNP-330Y |
| Centrifugal Force | 38kN |
| Weight | 572 lbs |
| Compaction Depth | 85cm(33.5in) |
| Frequency | 4800vpm |
| MOQ | 20 Pcs |
1 Year Limited Warranty
Hydraulic Reversible
Compactor Type
260kg
Weight
13HP
Gasoline Engine
32.7in x 25in
Plate Size
C.A.G Hydraulic Reversible Plate Compactor, model TCNP-330Y, is powered by a 13HP Honda or Loncin petrol engine. This reversible plate compactor with its 32.7 x 25-inch compactor plate size, provides 38kN of centrifugal force oscillating at 4800 vibrations per minute to ensures it provides superior compaction in any direction, forward and reverse. C.A.G heavy-duty hydraulic reversible plate compactor is perfectly suited for the compaction of building back-fill, compaction of interlocking paving stones, and high production compaction applications involving granular soils.
| Model | TCNP-330Y | |
| Engine Type | Honda GX390 | Loncin Petrol G390F |
| Power Kw(hp) | 9.8(13) | 9.8(13) |
| Weight kg(lbs) | 260(572) | |
| Frequency vpm | 4800 | |
| Centrifugal Force kN | 38 | |
| Compaction Depth cm(in) | 85(33.5) | |
| Travel Speed cm/s(in/s) | 30(11.8) | |
| Efficiency m2/hr(ft2/hr) | 270(2906) | |
| Plate Size cm(in) | 83*64(32.7*25) | |
| Package cm(in) | 90*66*125(35*26*49) | |

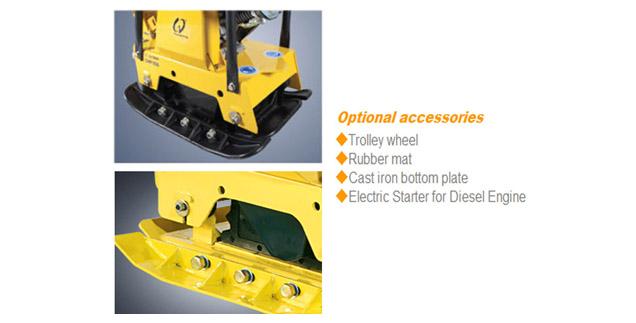

| Optional Cast iron bottom plate | ||
| Optional trolley wheel | ||
| Optional rubber mat | ||
| Optional Engine: B&S 13.5HP or Kohler CH395 9.5HP /CH440 14HP | ||
