255kg Reversible Plate Compactor
| Product Name | TCNP-330 |
| Centrifugal Force | 38kN |
| Weight | 560 lbs |
| Compaction Depth | 90cm(34in) |
| Frequency | 3750vpm |
| MOQ | 20 Pcs |
1 Year Limited Warranty
Reversible Direction
Compactor Type
255kg
Weight
13HP
Gasoline Engine
31in x 18in
Plate Size

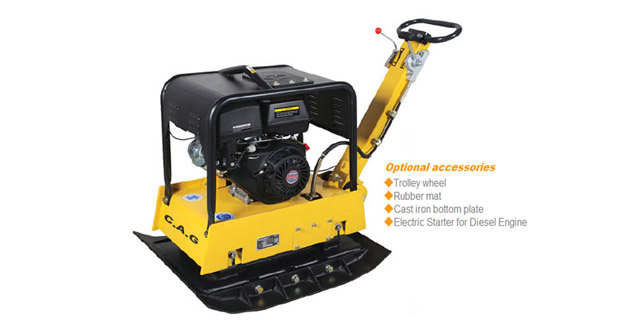

C.A.G Reversible Vibratory Plate Compactor, model TCNP-330, is powered by a 13HP Honda or Loncin petrol engine. This reversible plate compactor with its 31 x 18 inch compactor plate size, provides 38kN of centrifugal force oscillating at 3750 vibrations per minute to ensure your project’s base material is fully & completely compacted. The C.A.G reversible plate compactor is the perfect tool to complete your home improvement, paving, brickwork, sidewalk, patio, or for compaction of gravel & sand for raised gardens & retaining walls.
| Model | TCNP-330 | |
| Engine Type | Honda GX390 | Loncin Petrol G390F |
| Power Kw(hp) | 9.8(13) | 9.8(13) |
| Weight kg(lbs) | 255(560) | 255(560) |
| Frequency vpm | 3750 | |
| Centrifugal Force kN | 38 | |
| Compaction Depth cm(in) | 90(34) | |
| Travel Speed cm/s(in/s) | 35(14) | |
| Efficiency m2/hr(ft2/hr) | 570(6100) | |
| Plate Size cm(in) | 82*48(31*18)/Extension plate:82*8.5(31*3.3) | |
| Package cm(in) | 91*50.5*114(35.8*19.9*44.9) | |

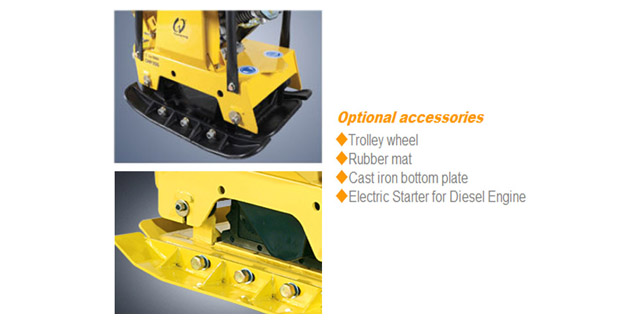

| Optional trolley wheel | ||
| Optional rubber mat | ||
| Optional Extension plate | ||
| Optional Cast iron bottom plate | ||
| Optional Electric Starter for Diesel Engine | ||
| Optional Engine:Honda GX270 9HP,Loncin G270 9HP,B&S 13.5HP,Kohler CH395 9.5HP/CH440 14HP | ||
