2.0kw Gasoline Generator
| Product Name | TG2600 | |
| Single-cylinder | 4-stroke | |
| 2kw@50Hz | 2.5kw@60Hz | |
| Brush Type | |
| Votage Control | AVR | |
| Start System | Recoil | |
| MOQ | 20 Pcs |
1-Year Limited Warranty
163cc/5.5HP
Gasoline Engine
2.2kw or 2.8kw
Max Power
15L
Fuel Tank
ECO Design
Open Frame

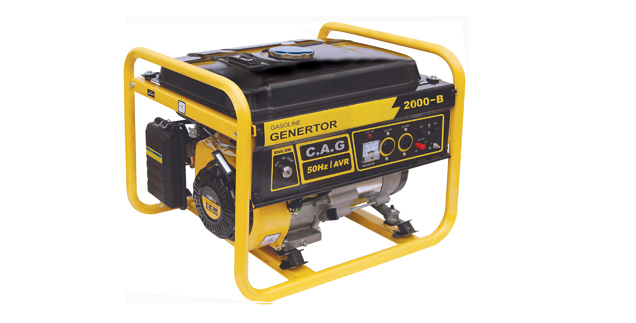

The C.A.G 2kw Portable Generator is powered by a reliable single cylinder, OHV air cooled 4-cycle, 5.5HP petrol engine, with its 15L metal fuel tank it will run more than 12 hours at half load. The OHV engine is equipped with a low oil shutdown system that protects the engine from costly damage. This gasoline generator provides reliable, easy-start convenience to deliver power quickly for emergencies and home projects. Ideal for job site use, recreation, household, lawn and garden, to power small tools, and serve as home back-up power.
| Model | TG2600 |
| Type | Brush |
| Voltage Regulate | AVR |
| Frequency Hz | 50 | 60 |
| Rated AC Voltage (V) | 230V | 120V-240V |
| Rated AC Output (KVA) | 2.0 | 2.5 |
| Peak AC Output (KVA) | 2.2 | 2.8 |
| Power Factor COSφ | 1 |
| Model | TE160 |
| Type | OHV,4-stroke, single cylinder,Air-cooled |
| Bore x Stroke (mm) | 68×45 |
| Displacement (ml) | 163 |
| Max. output (HP/rpm) | 5.5/3600 |
| Fuel Type | Unleaded Gasoline |
| Fuel Tank Capacity (L) | 15L |
| Continuous Operating 1/2 load (h) | 13 |
| Engine Oil Standard | SF or Higher Grade |
| Oil Capacity (L/gal) | 0.6/0.16 |
| Ignition system | T.C.I. |
| Starting System | Recoil and hand-operated /Electric start |
| Operating Noise Level (7m) dB(A) | 67 |
| Dimensions L×W×H (mm) | 610x460x470 |
| Net /Gross Weight (kg) | 38/40 |
| 20/40FT unit | 225 / 475 |
