1.5inch Gas Transfer Pump
| Product Name | TP15CX |
| In&Out Diameter | 40mm /1.5inch |
| Engine Type | 2.6HP Gasoline Engine |
| Rated capacity | 25.0(m³/h) |
| Rated total head | 20m |
| Max.suction head | 8m |
| MOQ | 20 Pcs |
1-year limited Warranty
40(mm)
In/Outlet Size
NPT Type
Connecting
2.6HP/87cc
Gasoline Engine
1.6L
Fuel Tank

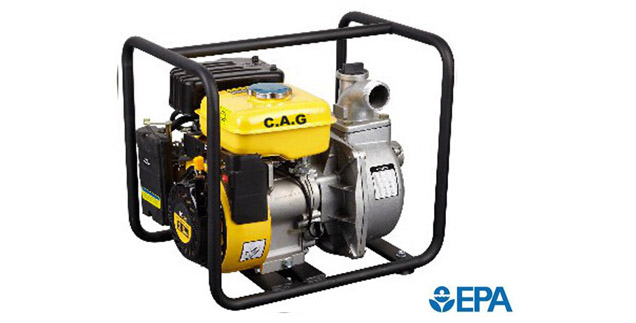

A C.A.G portable 1.5 inch self-priming gas water pump powered by an EPA standard 4-stroke 87cc engine can quickly empty or fill with speeds up to 25m³ water per hour. Included are an intake strainer, hose clamps, and a spark plug wrench for maintenance. Its lightweight design makes it easy to move where it is needed to get the water job done. The C.A.G 1-1/2″ petrol self-priming water pump is perfect for any clear water pool, gardeners, ponds or large tanks, boat owners, and more.
| Model | TP15CX |
| Inlet and outlet size | 40 (1.5″) |
| Rated speed (HP/rpm) | 3,600rpm |
| Displacement | 25m3/h |
| Pump lift (m) | 20m |
| Suction height (m) | 8m |
| Engine model | TG90 |
| Displacement | 87ml |
| Engine max output(Hp/rpm) | 2.6/3600 |
| Fuel volume (L) | 1.6L |
| Bore x stroke | 54 x 38 |
| Compression ratio | 8.5:1 |
| Oil volume (L) | 0.37L |
| EMin fuel consumption g/HP-hour | 450g/HP-hour |
| Ignition model | transistor magneto |
| Start mode | recoil |
| NW/GW (kg) | 28/30 |
| Package dimensions (mm) | 480 x 345 x 400 |
