3inch Diesel Trash Pump
| Product Name | TP30TPA/B |
| In&Out Diameter | 80mm /3inch |
| Engine Type | 6HP or 9HP |
| Rated capacity | 78.0(m³/h) |
| Rated total head | 26m or 28m |
| Max.suction head | 8m |
| MOQ | 20 Pcs |
1-year limited Warranty
80(mm)
In/Outlet Size
Trash Pump
Pump Type
3.5L/12.5L
Fuel Tank
296 or 406cc
Diesel Engine

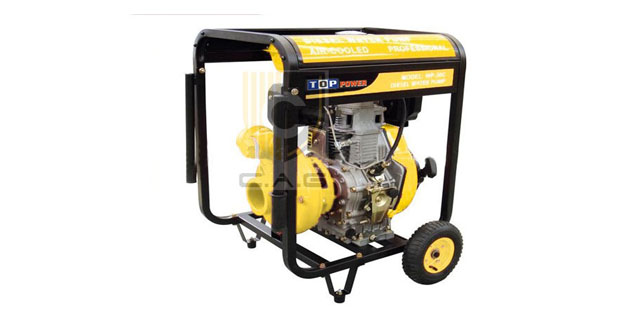

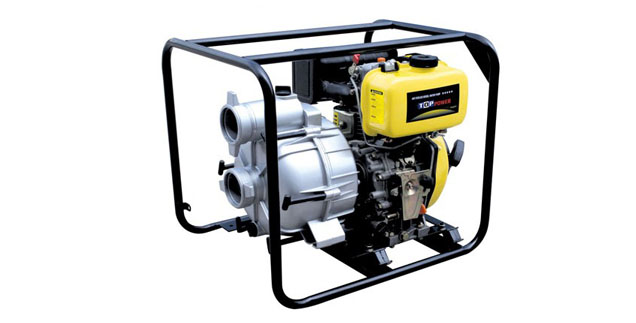

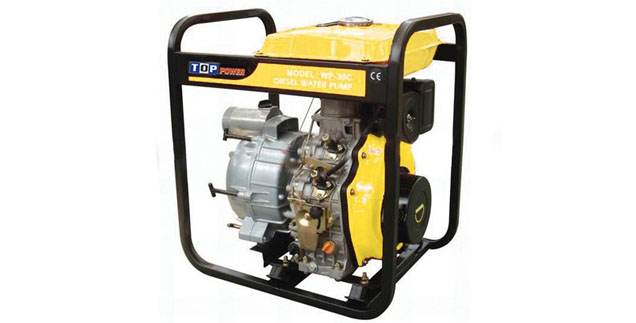

3-inch self-priming centrifugal diesel trash pumps powered by a heavy-duty C.A.G 6hp or 9hp diesel engine, include an aluminum body with cast-iron fittings, a cast iron impeller and volute for abrasion resistance, and a silicon mechanical seal for durability. The tubular steel frame design is better for transportation and pump protection. This 3-inch (80 mm) diesel trash pump is highly recommended for industry uses such as: marine, drilling, mining, and oil & gas related areas.
| Model : TP30TPA | Model : TP30TPB |
| Suction & Discharge Port Dia. (mm) 80(3.0) | Suction & Discharge Port Dia. (mm) 80(3.0) |
| Max. Head(m) 26 | Max. Head(m) 28 |
| Max. Suction(m) 8 | Max. Suction(m) 8 |
| Max. Flow(M³/H) 78 | Max. Flow(M³/H) 78 |
| Max. hard matter(mm) 35 | Max. hard matter(mm) 35 |
| Self Priming Time (s/4m) 120 | Self Priming Time (s/4m) 120 |
| Model TP178F | Model TP186F |
| Type Forced air-cooled, 4-stroke, Diesel | Type Forced air-cooled, 4-stroke, Diesel |
| Displacement (cc) 296 | Displacement (cc) 406 |
| Max Output (Hp/rpm) 6.0/3600 | Max Output (Hp/rpm) 9/3600 |
| Fuel Diesel | Fuel Diesel |
| Fuel Tank Capacity 3.5L or 12.5L | Fuel Tank Capacity (L) 3.5 or 12.5L |
| Oil SAE10W30 (Above CC Grade) | Oil SAE10W30 (Above CC Grade) |
| Oil Capacity (L) 1.1 | Oil Capacity (L) 1,1 |
| Ignition System Direct injection | Ignition System Direct injection |
| Starting System Recoil | Starting System Recoil |
| Net Dimension (LxWxH(mm)) 605x480x550 | Net Dimension (LxWxH(mm)) 605x480x550 |
| Overall Dimension (LxWxH(mm)) 620x495x570 | Overall Dimension (LxWxH(mm)) 620x495x570 |
| N.W / G.W (kg) 56/58 | N.W / G.W (kg) 61/65 |
