14HP Diesel Engine
| Product Name | TP190F |
| Single-cylinder | 4-stroke |
| 7.3 kW/3000 r/min | 8.0 kW/3600 r/min |
| Shaft Type | Horizontal |
| Cooling system | Air cooled |
| Start System | Recoil or Electric |
| MOQ | 20 Pcs |
1 Year Limited Warranty
90x75(mm)
Bore×Stroke
477cc
Displacement
5.5L
Fuel Tank
1.65L
oil capacity

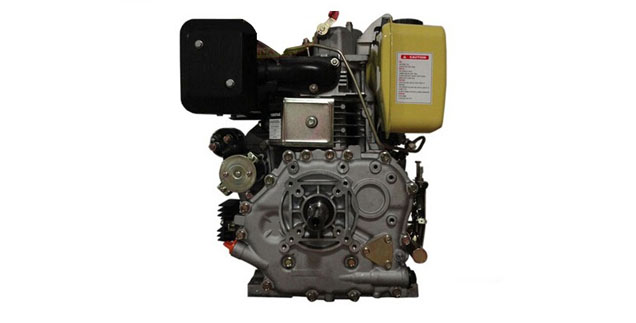

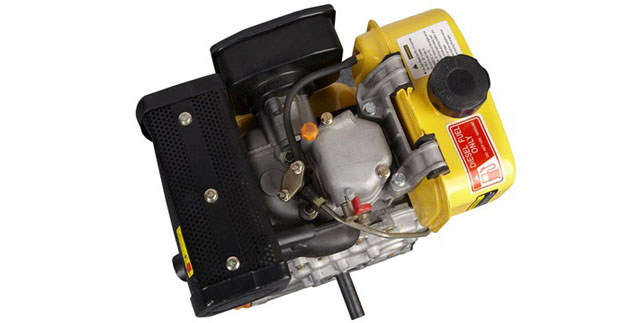

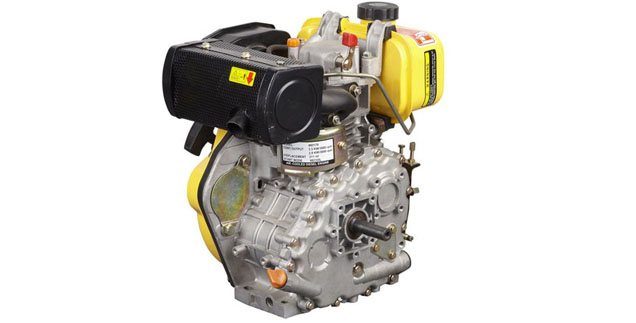

This 14HP four-stroke, single cylinder diesel engine is designed for outdoor power equipment applications, such as pressure washers, lawn mowers, water pumps, and portable generators. Direct injection for top-tier combustion technology increases power and lowers fuel consumption, and also enables this 14 hp diesel engine to have a longer engine life in tough environments.
| Model: | TP190F |
| Engine Type: | Vertical,Single cylinder, 4-cycle air-cooled,direct injection |
| Bore×Stroke (mm) | 90×75 |
| Displacement(cc) | 477 |
| Compression ratio | 19:01 |
| Rated power/speed (kw/r/min): | 7.3/3000 8.0/3600 |
| Lowest rotation speed: | at zero load (r/min) ≤1300 |
| Lubricating system: | Pressure splashed |
| Starting system: | Recoil starter/Electric starter |
| Rotation direction: | (face to the output axle) Anticlockwise |
| Fuel type: | 0#、-10#、-20# diesel |
| Fuel tank capacity (L): | 5.5 |
| Fuel consumption/related speed (g/kW.h/r/min) | 273.1/3000 279.5/3600 |
| Lube oil type: | CD grade or SAE 10W-30, 15W-40 |
| Lube oil capacity (L): | 1.65 |
| Starting motor capacity (V、kW): | 12V 0.8kW |
| Charging generator capacity (V、A) : | 12V 3A |
| Battery capacity (V、Ah): | Above 12V36Ah |
| Packing size（L×W×H）mm: | 500X455X545 |
| Gross weight(kg): | ≤47.5（Recoil starter）≤52.5（Electric starter） |
