14kN Diesel Tamping Rammer
| Product Name | TR75 |
| Impact Force(max) | 14kN |
| Engine Type | Diesel Engine |
| Jumping Stroke(max) | 8.5cm(3.4in) |
| Impact Number per Minute | 600-700 |
| MOQ | 20 Pcs |
1 Year Limited Warranty
14kN
Impact Force
5.0HP
Diesel Engine
2.8L
Fuel Tank
Recoil
Start System

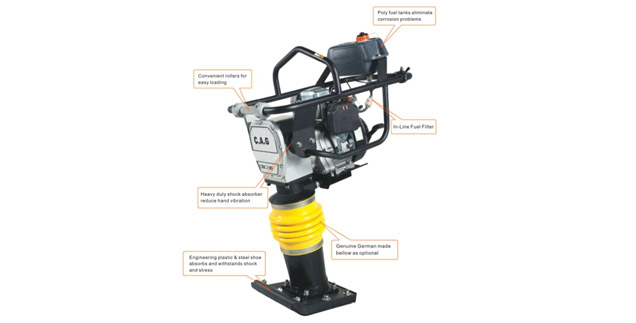

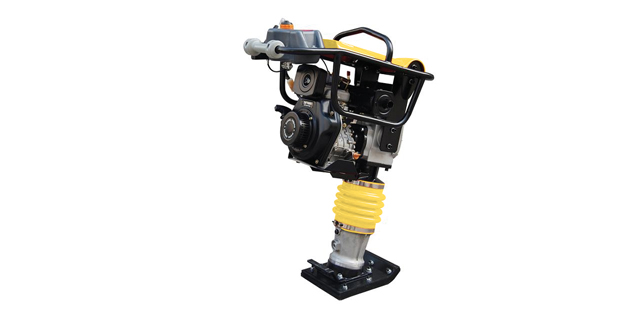

This Tamping Rammer Model: TR75 from C.A.G, is powered by a 5HP single cylinder, air cooled, diesel engine. The trench rammer features a convenient oil checking system and is well balanced for easy handling and operation. This diesel powered trench rammer delivers a maximum of 14kN of impact force. The C.A.G vibratory rammer is ideal for compacting cohesive soil, and asphalt in confined areas, as well as backfill and repairing work on asphalt.
| Model No. | TR75 |
| Engine Type | Diesel Engine D173F |
| Power kw(hp) | 3.8(5.0) |
| Weight kg(lbs) | 80(176) |
| Impact Force(max)kN | 14 |
| Jumping Stroke(max)cm(in) | 6.5(2.5) |
| Size of Foot cm(in) | 30*28(12*11) |
| Fuel Tank L | 2.8 |
| Impact Number(number per minute) | 600-700 |
| Package cm | 77.5*55*112 |
| Optional trolley wheel | |
| Optional Chinese Bellow or Germany made | |
| Optional engine cover for D173F | |
