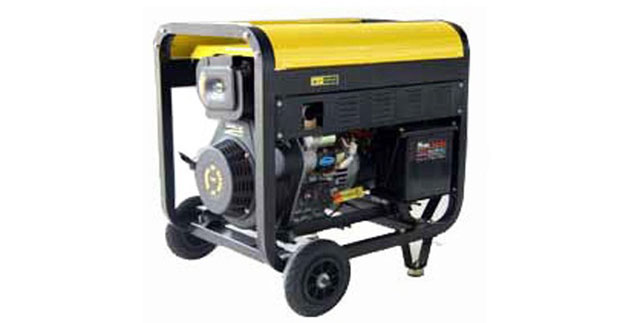

Luxy Series 3kw Diesel Generator
| Product Name | TP3500LDG/E | |
| Single-cylinder | 4-stroke | |
| 3.0kw@50Hz | 3.5kw@60Hz | |
| Brush Type | |
| Votage Control | AVR | |
| Start System | Recoil or Electric | |
| MOQ | 20 Pcs |
1-Year Limited Warranty
178F/6HP
Diesel Engine
3kw or 3.5kw
Max Power
13.5L
Fuel Tank
LUXY Design
Open Frame
C.A.G Luxury Series diesel portable generators are easy to move around with wheels on the backside. The diesel portable generators provides instant power to ensure appliances and other equipment stay charged during a power outage. The AVR voltage control technology provides a clean power supply. The AC circuit breaker, fuel gauge, and oil shutdown system make sure the engine is stable and running safely.
| Model: | TP3500LDG |
| Rated frequency (Hz): | 50 60 |
| Rated output (kVA): | 2.5 3.0 |
| Max. output (kVA): | 3.0 3.5 |
| Rated Voltage (V): | 115/230 120/240 |
| Rated current (A): | 24.3/12.2 27.5/13.8 |
| Rated rotation speed (r/min): | 3000 3600 |
| Phase NO.: | Single phase or three phase |
| Power factor (Cos Φ): | 1.0 |
| Insulation: | Grade B |
| Pole number: | 2 |
| Excitation mode: | Self-excitation & constant voltage (AVR) |
| DC12V output: | Connection pole output |
| Engine Model: | Engine Model TP178FG |
| Displacement (cc): | 296 |
| Engine power [KW/(r/min)]: | 3.68/3000 4.0/3600 |
| Battery capacity (V-Ah): | 12V 36Ah |
| Fuel consumption (g/kW.h): | ≤370 |
| Fuel tank capacity (L): | 13.5 |
| Continuous running time (hr): | 8.5 |
| Noise level: | （7m）dB(A) 77 |
| Structure type: | Luxy Design Open frame |
| Overall dimension（L×W×H）(mm): | 655X480X530 |
| Net weight(kg): | 77 |
| Working assorting weight (Kg): | 79 |
