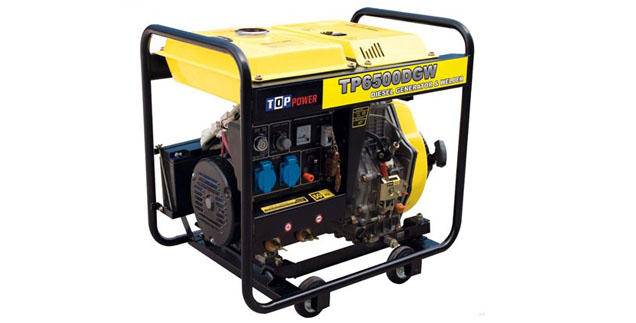

210A Diesel Welder Generator
| Product Name | TP6500DGW |
| Rated welding | 160A |
| Regulation range | 50-210A |
| Max A.C output (kw): | 5.5KW @ 2-Pole Motor |
| Max A.C output (kw): | 2.8KW@ 4-Pole Motor |
| Start System | Recoil or Electric |
| MOQ | 20 Pcs |
1-Year Limited Warranty
186FA/10HP
Diesel Engine
160A
Rated welding
Max 5.5Kw
2-Pole Motor
Max 2.8Kw
4-Pole Motor
C.A.G’s diesel welder generator delivers 2 in 1 stick DC welding and portable AC generator power, driven by its 12HP air cooled diesel engine, which ensures that it produces more consistent and higher quality welds. The welding current ranges from 50 up to 210 amps. This diesel welding generator offers a maximum AC power of 5500 watts for the 2-Pole type and 2800 watts for the 4-Pole type. C.A.G’s diesel welder generator is ideal for job site and remote-area service applications.
| Model No. | TP6500DGW | ||
| Rated frequency (Hz) | 50hz or 60Hz | ||
| Rated rotation speed (rpm) | 3000 | ||
| Rated voltage (V): | 220 | ||
| Rated welding DC current (A) | 160A | ||
| Current regulation range (A) | 50-210A | ||
| Rated welding work voltage (V) | 26V | ||
| Welding load continuous ratio | 40% | ||
| Rated A.C output (kw): | 5.0KW @ 2-Pole Motor | 2.4KW@ 4-Pole Motor | |
| Max A.C output (kw): | 5.5KW @ 2-Pole Motor | 2.8KW@ 4-Pole Motor | |
| DC output（V.A） | 12/8.3 | ||
| Power Factor | 1 | ||
| Phase No. | Single Phase | ||
| Noise level dB@/7m | 80-82 | ||
| Structure type | Open-frame | ||
| Excitation system | Brush AVR | ||
| Diesel Engine Model | TP188FE | ||
| Displacement (cc) | 456 | ||
| Compression ratio | 20:01 | ||
| Starting system | Recoil/Electric start | ||
| BatteryAh | 12V/17AH–30AH | ||
| Protection system | Low oil alarm | ||
| Packing LxWxH（mm） | 740x500x660 | ||
| Weight | Net.kg | 115 | |
| Gross.kg | 118 | ||
