12kN Gasoline Tamping Rammer
| Product Name | TR80 |
| Impact Force(max) | 12kN |
| Engine Type | Gasoline Engine |
| Jumping Stroke(max) | 6.5cm(2.6in) |
| Impact Number per Minute | 600-700 |
| MOQ | 20 Pcs |
1 Year Limited Warranty
12kN
Impact Force
4.0-5.5HP
Gasoline Engine
2.8L
Fuel Tank
Recoil
Start System

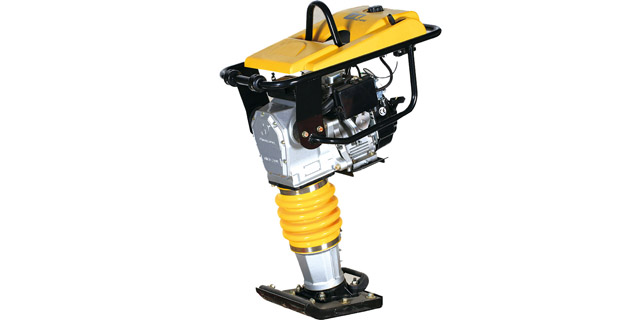

This C.A.G Gasoline Powered Tamping Rammer, is available for Loncin or Honda brand gasoline engines as well as Robin engines. The model TR80 gasoline powered trench rammer can deliver 12kN of impact force. It is easy to start, features low-noise operation, and a low maintenance cost feature. The C.A.G Tamping Rammer is designed to deal with tough site conditions, such as clay and silt in tight repair jobs, or in narrow confined areas. It’s also great for open areas of asphalt, gravel, and sand sites.
| Model No. | TR80 | |||
| Engine Type | Robin | Robin | Loncin | Honda |
| EY20 | EH12-20 | G160F | GX160 | |
| Power kw(hp) | 3.7(5.0) | 3.0(4.0) | 3.6(4.8) | 4.0(5.5) |
| Weight kg(lbs) | 80(176) | 80(176) | 80(176) | 80(176) |
| Impact Force(max)kN | 12 | |||
| Jumping Stroke(max)cm(in) | 6.5(2.6) | |||
| Size of Foot cm(in) | 30*28(12*11) | |||
| Fuel Tank L | 2.8 | |||
| Impact Number(number per minute) | 600-700 | |||
| Package cm | 77.5*55*112 | |||
| Optional trolley wheel | ||||
| Optional Chinese Bellow or Germany made | ||||
| Optional engine cover for G160F,EH12-20,GX160 | ||||

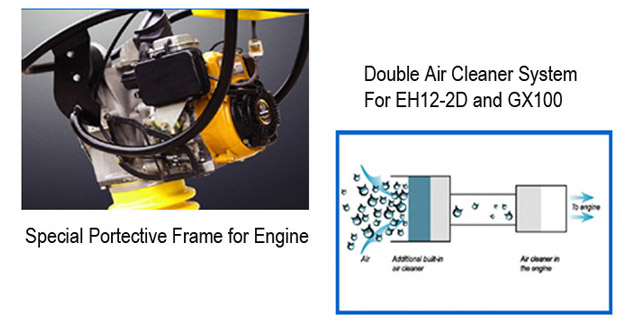

| Optional Double air filter for EH12-2D,GX160 | ||||
