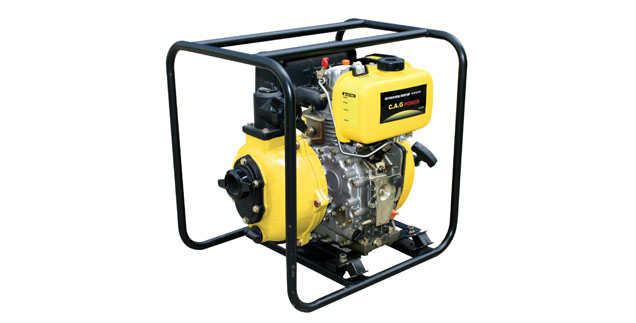

2inch High Pressure Gasoline Water Pump
| Product Name | TP20CXH |
| In&Out Diameter | 50mm /2inch |
| Engine Type | 6.5HP Gasoline Engine |
| Rated capacity | 30.0(m³/h) |
| Rated total head | 68m |
| Max.suction head | 7m |
| MOQ | 20 Pcs |
1-year limited Warranty
50(mm)
In/Outlet Size
High Pressure
Pump Type
3.6L
Fuel Tank
6.5HP /196cc
Gasoline Engine

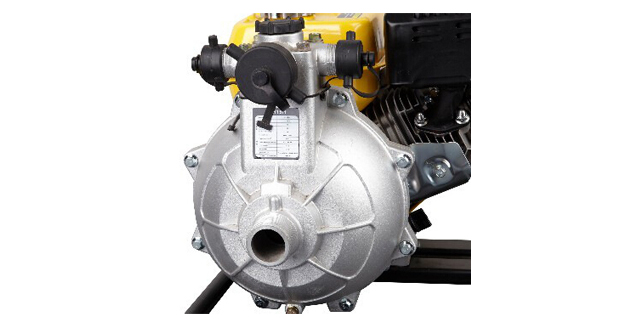

The C.A.G 2.0-inch-High Pressure Gasoline Water Pump, is powered by a 6.5HP/196cc OHV, 4 stoke, air cooled TG200 C.A.G petrol engine with a 2 inch NPT inlet diameter, and a 1.5 inch/2×1 inch outlet diameter. This high pressure water pump can easily transfer up to 30m³ per hour of clear or dirty water. This C.A.G gasoline water pump is ideal for sprinkler systems, remote area firefighting, emergency water supply, and washing down equipment.
| Model | TP20HP |
| Inlet and outlet size | 50mm (2″) |
| Displacement | 30m³/h |
| Pump lift | 68m |
| Suction height | 7m |
| Engine model | TG200 |
| Displacement | 196cc |
| Engine max output | 6.5/3600(HP/rpm) |
| Engine max torque | 10.8/3600(HP/rpm) |
| Fuel volume | 3.6L |
| Bore x stroke | 68×54 (mm) |
| Compression ratio | 8.5:1 |
| Oil volume | 0.6L |
| Ignition model | transistor magneto |
| Start mode | recoil |
| Package dimensions | 515*405*450 (mm) |
