5.5kw Petrol Generator
| Product Name | TF6500/E | |
| Single-cylinder | 4-stroke | |
| 5.0kw@50Hz | 5.5kw@60Hz | |
| Brush Type | |
| Votage Control | AVR | |
| Start System | Recoil or Electric | |
| MOQ | 20 Pcs |
1-Year Limited Warranty
188F/13HP
Gasoline Engine
5.5kw or 6.5kw
Max Power
25L
Fuel Tank
Tank Cover Design
Open Frame

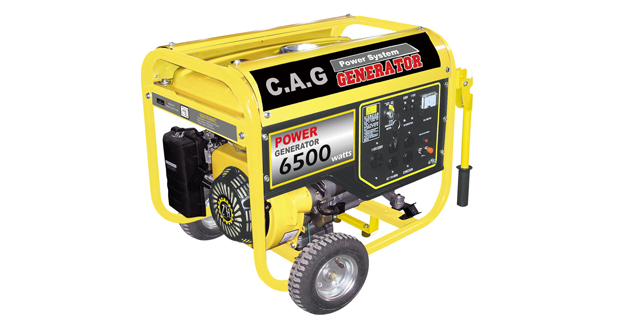

Our C.A.G TF6500/E Gasoline Portable Generator is powered by a reliable 389cc 13HP, single cylinder, 4-stroke OHV engine that produces a maximum power of 5500 watts at 50Hz and 6500 watts at 60Hz. Its 25L fuel tank ensures over 10-hours of continuous operation at 50-percent load. Wheel kits and handle design mean the portable electric generator is easy to move in and out of storage or to new sites. This petrol generator is ideal for large RV’s, power tools, trailers, bigger homes, or construction sites.
| Model | TF6500/E |
| Type | Brush |
| Voltage Regulate | AVR |
| Frequency Hz | 50 | 60 |
| Rated AC Voltage (V) | 230V | 120V-240V |
| Rated AC Output (KVA) | 5.0 | 6.0 |
| Peak AC Output (KVA) | 5.5 | 6.5 |
| Power Factor COSφ | 1 |
| Model | TE390 |
| Type | OHV ,4-stroke, single cylinder ,Air-cooled |
| Bore x Stroke (mm) | 88×64 |
| Displacement (ml) | 389 |
| Max. output (HP/rpm) | 13.0/3600 |
| Fuel Type | Unleaded Gasoline |
| Fuel Tank Capacity (L) | 25L |
| Continuous Operating 1/2 load (h) | 10 |
| Engine Oil Standard | SF or Higher Grade |
| Oil Capacity (L/gal) | 1.1/0.29 |
| Ignition system | T.C.I. |
| Starting System | Recoil and hand-operated /Electric start |
| Operating Noise Level (7m) dB(A) | 72 |
| Dimensions L×W×H (mm) | 700x540x580 / 700*540*630(Handle Design ) |
| Net /Gross Weight (kg) | 72/74 (85) |
| 20/40FT unit | 136 (102) / 272 (216) |
