3.0kw Gasoline Generator

Product NameTG3500A/B
Single-cylinder4-stroke
Rated Power TG3500A2.5kw@50Hz/3.0kw@60Hz
Rated Power TG3500B2.7kw@50Hz/3.2kw@60Hz
AlternatorBrush /AVR
Start SystemRecoil or Electric
MOQ20 Pcs
1-Year Limited Warranty
Request a Free Quote


6.7HP/7.0HP

Gasoline Engine

3.5kw or 3.7kw

Max Power

15L

Fuel Tank

ECO Design

Open Frame

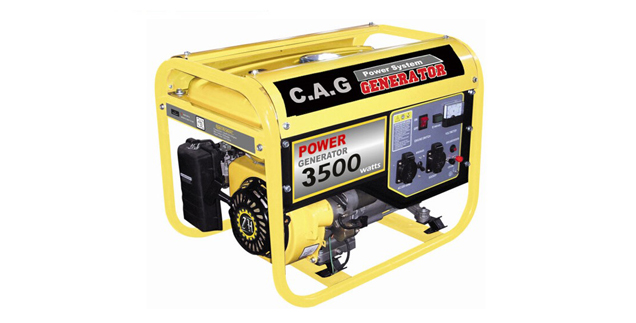

The C.A.G 3kw Portable Generator is powered by a reliable single cylinder, OHV air cooled 4-cycle, 6.7HP or 7HP petrol engine, with its 15L metal fuel tank it will run more than 12 hours at half load. The OHV engine is equipped with a low oil shutdown system that protects the engine from costly damage. This gasoline generator provides reliable, easy-start convenience to deliver power quickly for emergencies and home projects. Ideal for job site use, recreation, household, lawn and garden, to power small tools, and serve as home back-up power.

ModelTG3500ATG3500B
TypeBrushBrush
Voltage RegulateAVRAVR
Frequency Hz    50    |      60    50    |      60
Rated AC Voltage (V)   230V |    120V-240V  230V  |    120V-240V
Rated AC Output (KVA)    2.5   |         3.0     2.7  |         3.2
Peak AC Output (KVA)    2.8   |         3.5     3.0  |         3.7
Power Factor COSφ11
ModelTE200TE210
TypeOHV ,4-stroke, single cylinder ,Air-cooledOHV ,4-stroke, single cylinder ,Air-cooled
Bore x Stroke (mm)70×5270×56
Displacement (ml)200210
Max. output (HP/rpm)6.7/36007.0/3600
Fuel TypeUnleaded GasolineUnleaded Gasoline
Fuel Tank Capacity (L)15L15L
Continuous Operating 1/2 load (h)1212
Engine Oil StandardSF or Higher GradeSF or Higher Grade
Oil Capacity (L/gal)0.6/.0160.6/.016
Ignition systemT.C.I.T.C.I.
Starting SystemRecoil and hand-operated /Electric startRecoil and hand-operated /Electric start
Operating Noise Level (7m) dB(A)6868
Dimensions L×W×H (mm)610x460x470610x460x470
Net /Gross Weight (kg)39/41(46)39/41(46)
20/40FT unit225/475225/475
