6.5HP 2:1 Clutch Reduction
| Product Name | TG200C |
| Transmission model | By Clutch 2:1 Gear Reduction |
| Reduction ratio: 2:1 | 1500RPM or 1800RPM |
| Shaft Type | Horizontal |
| Cooling system | Air cooled |
| Start System | Recoil or Electric |
| MOQ | 20 Pcs |
1 Year Limited Warranty
68x54(mm)
Bore×Stroke
196cc
Displacement
1500 or 1800
RPM
2:1 Clutch Reduction
PTO

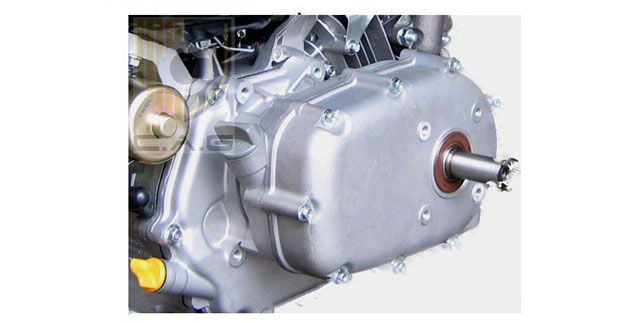

This C.A.G 6.5hp engine with its OHV 196cc design delivers a max of 6.5HP and PTO by Clutch 2:1 Gear Reduction to the Power sources. to the power sources. The Clutch Gear Reduction Transmission model is an ideal solution for 1500rpm or 1800rpm power needs. C.A.G multipurpose engines offer longer life and ease of operation for outdoor power equipment.
| Model | TG200C |
| Engine type | OHV, 4-stroke, single cylinder with forced air cooling |
| Displacement | 196ml |
| Bore ×Stroke | 68×54(mm) |
| Reduction ratio | 2:1 |
| Max power output | 4.1kw/3600rpm |
| Recommend power using | 3.4kw/3600rpm |
| Max torque | 11N.m/2500rpm |
| Transmission mode | Clutch Box |
| Start system | Manual/electric |
| Oil capacity | 0.6L |
| Fuel consumption | 395g/kw.h |
| N.W/G.W | 20KG/23KG |
| Carton dimension | 391×376×335(mm) |
