Gasoline Engine Driven Concrete Vibrators
| Product Name | CVT |
| Engine Type | Gasoline Engine |
| Power | 5.5HP |
| Vibrating Head Length | 6m |
| DFrequency | 9800-12000(V.P.M) |
| MOQ | 20 Pcs |
1 Year Limited Warranty
163cc
Displacement
5.5HP
Gasoline Engine
3.6L
Fuel Tank
Recoil
Start System

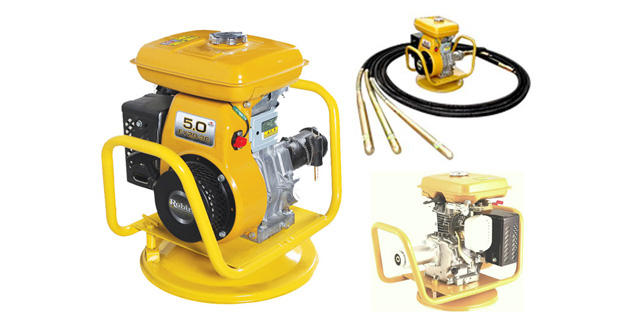

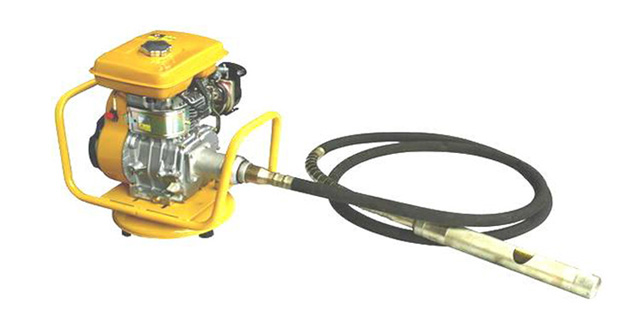

C.A.G Gasoline Engine Driven Concrete Vibrator, is powered by a 5.5HP Loncin or Honda engine, as well as by Robin or Kohler engines. This concrete vibrator has a 6-meter flexi-drive shaft, with the following concrete poker sizes available: 28mm /32mm /38mm /45mm /50mm /60mm . Wide ranges of pock models are suited to all types of work situations. This kind of petrol engine powered poker vibrator is the most suitable alternative for sites where there is no electric current available.

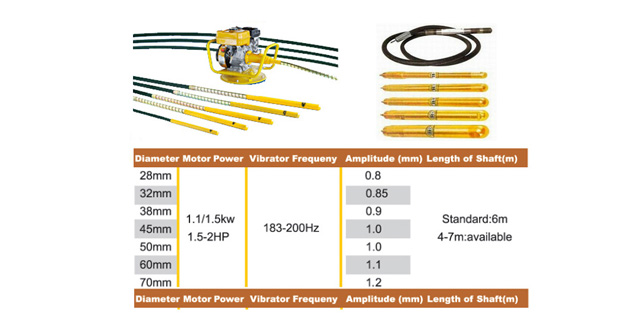

| Model | 28 | 32 | 38 | 45 | 50 | 60 |
| Vibration Head (mm) | 28*470 | 32*470 | 38*470 | 45*470 | 50*470 | 60*470 |
| Vibration / min | 9800～12000 | |||||
| Shaft roate speed | 3000-3600 | |||||
| Amplitude (m / min) | 0.8 | 0.9 | 1.2 | 1.3 | 1.6 | 2.0 |
| Flexible shaft (m) | 6 | 6 | 6 | 6 | 6 | 6 |
| Weight of hose | 14 | 16 | 18 | 19 | 20 | 21 |
| Packing size of hose(mm) | 870 (L) * 660 (W) * 80 (H) | |||||

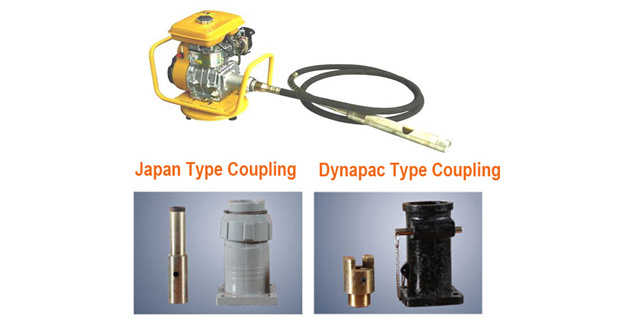

| Join type | PIN TYPE ；BUTTERFLY TYPE | |||||
| Engine model | S20 / S160 | |||||
| Fuel tank capacity (L) | 3.8 / 3.6 | |||||
| Starting system | Recoil starter | |||||
| Packing size (L*W*H) mm | 515*380*515 / 515*425*445 | |||||
| Net weight (KG) | 22 / 22 | |||||
